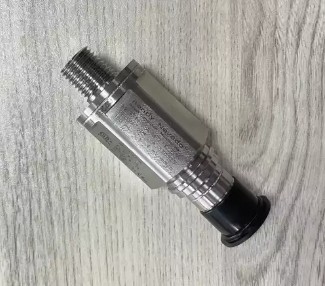

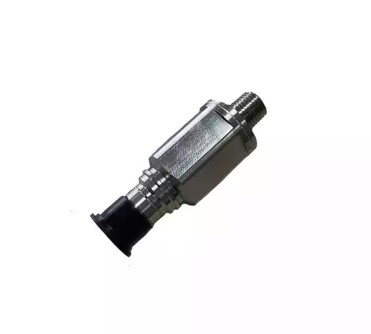

bently nevada 330525-02 vibration sensor

bently nevada 330525-02 vibration sensor

Description

Product Features

1.Ease of implementation and use

- Interfaces with PLCs and control systems (like DCS and SCADA)

- Provides a quick learning curve for operations and maintenance –through a familiar interface similar to that for connecting other PLC or control system inputs

- Requires no field configuration or adjustments

- Needs few additional parts for a complete system

- Includes technical support for customers on how to monitor their equipment

- Includes self-test

- Incorporates protected interface

- Supports a variety of interface cables

2.Data Quality

- Provides accurate and repeatable data

- Uses simple data format

- Provides raw vibration signal for verification and analysis

3. EHS Compliant

- Implements safe and ergonomic design - Supports access to hazardous areas

4.Incorporates robust CM design for reliability

5.Implements Industry standard 4 to 20mA loop-powered transmitter

Electrical
Sensitivity – Main loop (Signal One)	0.0 to 12.7 mm/s (0 to 0.5 in/s) 0.0 to 25.4 mm/s (0 to 1.0 in/s) 0.0 to 50.8 mm/s (0 to 2.0 in/s) 10% FS, broadband rms (root mean square) [4 ± 0.3 mA equals 0.0 mm/s and 20 ± 2 mA equals 25.4 mm/s]
Output Format, Pin A Referenced to Pin B	4 to 20 mA current loop Velocity vibration
Excitation Voltage	12 to 30 Vdc (current limited to 40 mA)
Connector Wiring Convention	Pin A: 4-20 mA Positive Loop Pin B: 4-20 mA Negative Loop and common for Dynamic Signal Pin C: Dynamic Signal in voltage, unbuffered
Frequency Response	10 Hz to 1 kHz (600 cpm to 60 kcpm) ± 10%
Sensitivity –Dynamic Signal (Signal Two)	10.2 mV/m/s2 (100 mV/g)±20%
Frequency Response	1Hz to 10 kHz ( 60cpm to 600 kcpm) ± 3 dB
Linearity	±1%
Velocity Range(see Option AA and BB)	0 – 12.7 mm/s (0 – 0.5 in/s) 0 – 25.4 mm/s (0 – 1.0 in/s) 0 – 50.8 mm/s (0 – 2.0 in/s)
Operating Temperature Range	-40 ℃to +85℃ (-40 ℉ to +185 ℉)
Physical
Weight	131 g (4.62 oz), typical
Diameter	25.4 mm (1.00 in)
Height	66.0 mm (2.60 in)
Case Material	316L stainless steel
Connector	3-pin MIL-C-5015, 316L stainless steel
Mounting Hole in Body	1/4-28 UNF
Mounting Threads	M6 X 1 SI M8 x 1.25 SI ¼-28 UNF
Connector Wiring Convention	Pin A: 4-20 mA Loop Power (Positive with reference to Pin B) Pin B: 4-20 mA Loop Return (Negative/ return for Dynamic Signal) Pin C: Dynamic Signal (Unbuffered, referenced to Pin B)
